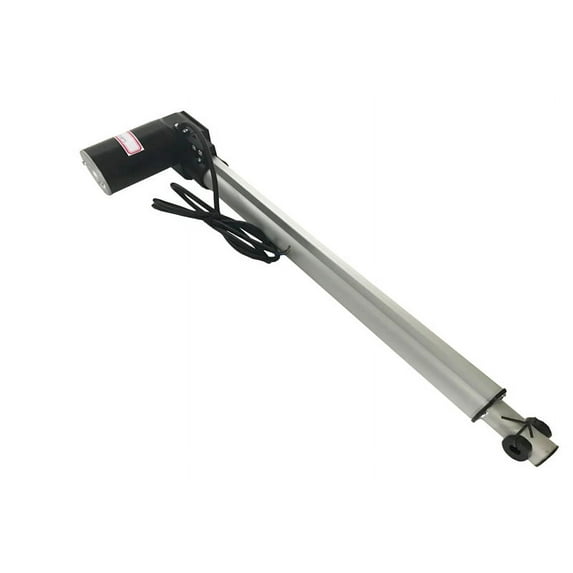

INTBUYING 24V Linear Actuator 6000N Electric Motor Heavy Duty Actuators Controller Stroke 15.7inch

(No ratings yet)

Key item features

Widely used in industry, office automation, massage chair, dental chair, medical equipment and many other fields
Input Voltage :24V DC,Stroke Length :S = 400mm (15.74Inch),Min Installation Dimension:L=S+175mm,Max Installation Dimension:A= 2S+175mm,Max Push Load :6000N (1320lbs),Max Pull Load :4500N (990lbs)
All metal gear: smooth transmission, wear - resistant, high transmission torque
Pure copper core: low heating, long service life and more stable performance
Caring magnetic tile carbon brush: motor magnetic field more powerful, better performance, lower noise

Specs

Maximum Pressure
1320 lb
Stroke Length
15.74 in
Material
Metal
Power Type
Corded Electric
Volts
24 VDC
Brand
Intbuying

Current price is $79.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Product features
Input Voltage :24V DC
Stroke Length :S = 400mm (15.74Inch)
Min Installation Dimension:L=S+175mm
Max Installation Dimension:A= 2S+175mm
Max Push Load :6000N (1320lbs)
Max Pull Load :4500N (990lbs)
Speed :5~7mm/s
Operating frequency :Max 25%
Duty Cycle :25%
Protective Class :IP54
Operation Temperature:-26~85℃
Control Mode :Positive & Negative
Product Description:
Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.
With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
Please Note:
Because of many models, different telescopic length. So actual item may look different from the one shown on the webpage. The web page shows: S = 400MM (15.74Inch).
Items included:
1 set of Linear Actuator(6000N,400mm,24V DC) (021002)

Widely used in industry, office automation, massage chair, dental chair, medical equipment and many other fields
Input Voltage :24V DC,Stroke Length :S = 400mm (15.74Inch),Min Installation Dimension:L=S+175mm,Max Installation Dimension:A= 2S+175mm,Max Push Load :6000N (1320lbs),Max Pull Load :4500N (990lbs)
All metal gear: smooth transmission, wear - resistant, high transmission torque
Pure copper core: low heating, long service life and more stable performance
Caring magnetic tile carbon brush: motor magnetic field more powerful, better performance, lower noise
